Bore :
2 inch
OD :
2.38"
Stroke :
26 inch
Rod :
1.25"
Port Size :
SAE 6
Pin :
1"
Extended :
60"
Retracted :
34"
Overall Length :
35.5"
Pressure :
3500 PSI
Column Load (LBs) :
7,200
Oil Volume (Quarts) :
1.41
DESCRIPTION

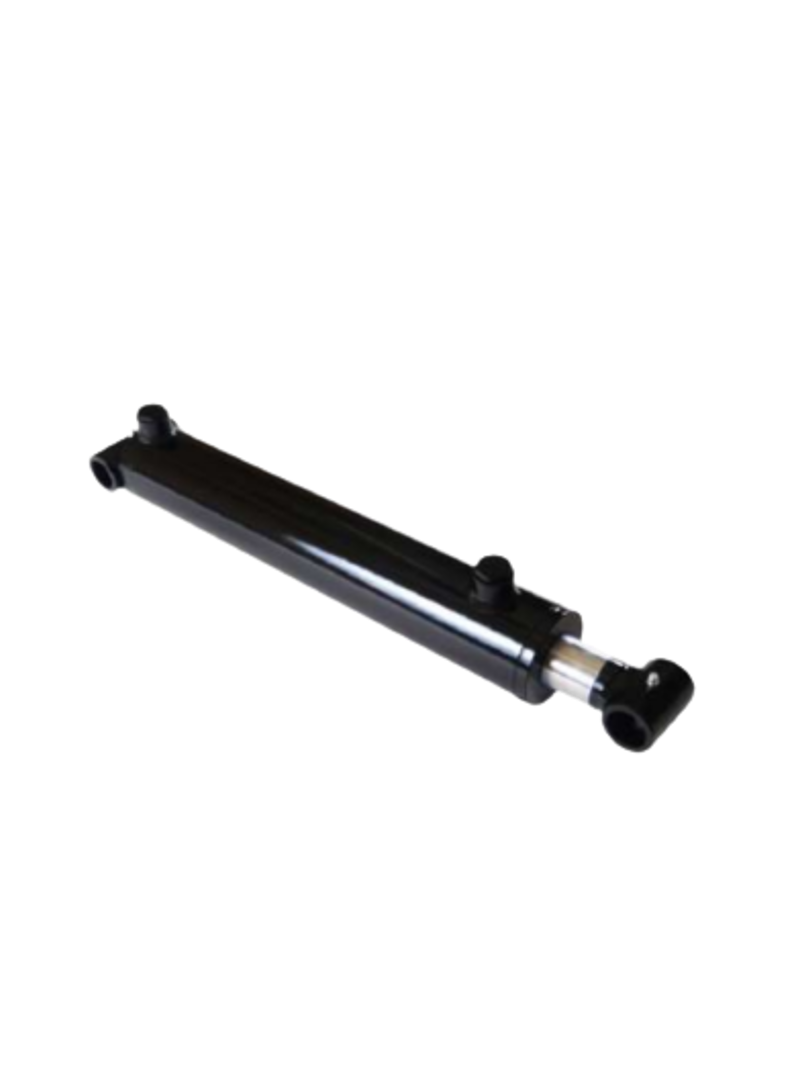

2" bore x 26" stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
Applications: Weldeds Double Acting Hydraulic Cylinder.
Color: Black.
