S/M/L Hydraulic Cylinder Piston Rod Seal U-cup Installer Tool

Hydraulic Cylinder Piston Rod Seal U-cup Installer Tool

Application:

Rapid and safe installing tools for flexible rod seals.

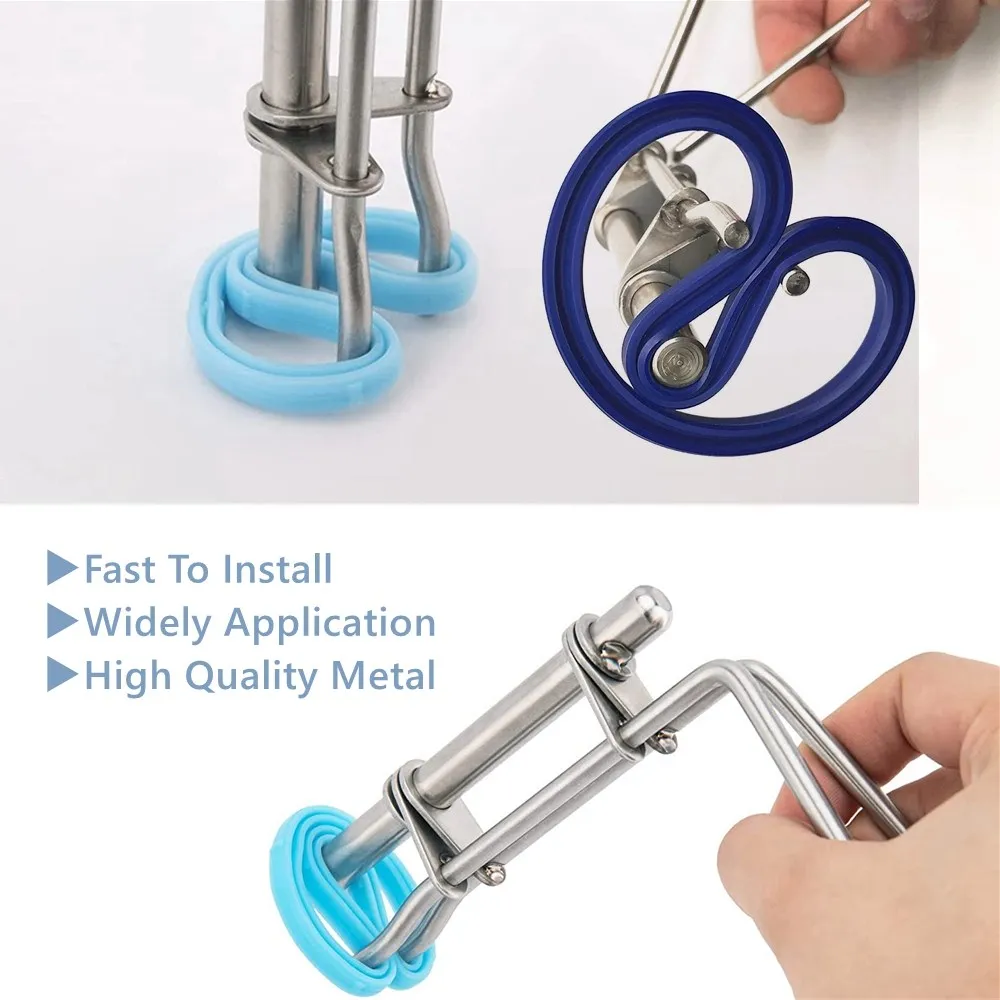

Making smaller size than gland hole by turning seal to omega shape can avoid most of damages.

Feature:

Includes 3 sizes to cover just about any rod seal installation job from 0.87" up

Small for rod diameters 22-40mm(0.87" - 1.57" ROD) gland hole, 6mm cross section max

Medium for rod diameters 40-70MM (1.57" - 2.75" ROD) gland hole, 8mm cross section max

Large for rod diameters 70-165MM (2.75" - 6.49" ROD) gland hole, 10mm cross section max

Warning:

Gland hole must be in the range of the sizes as below, otherwise, twistor can be damaged permanent

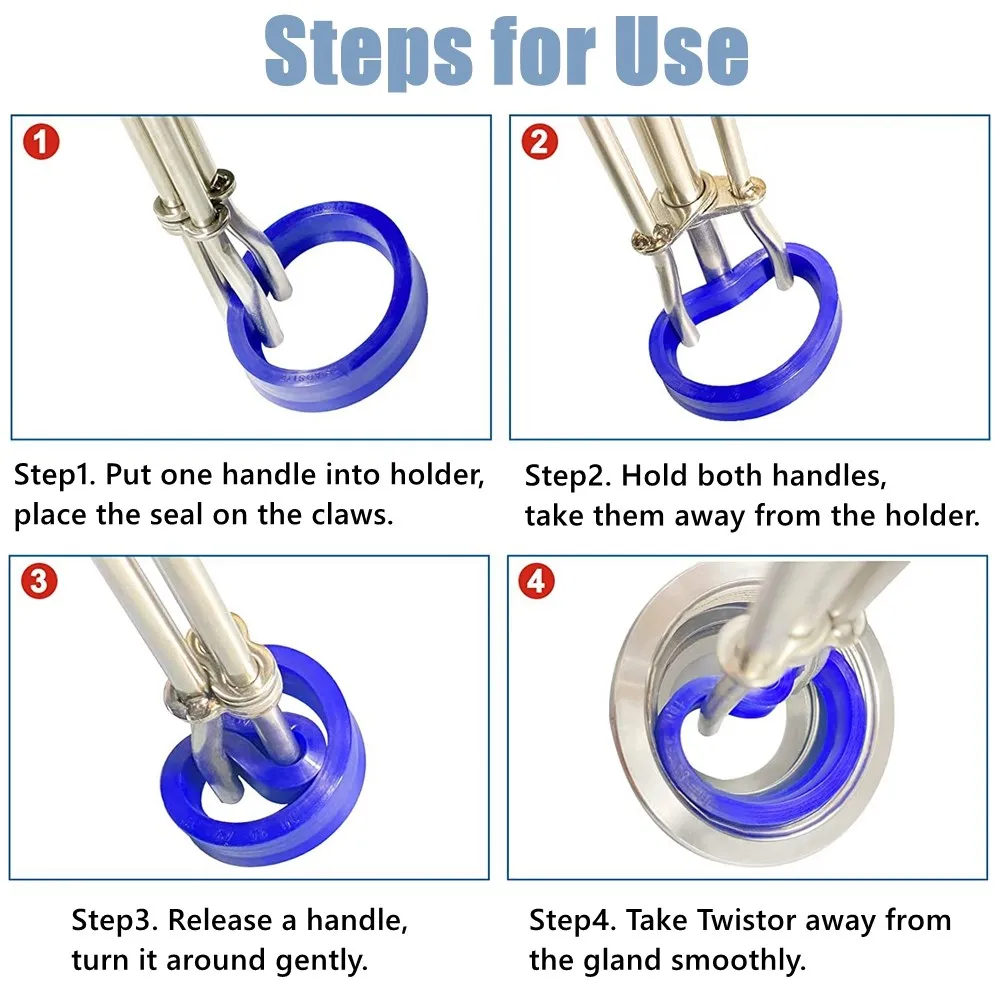

Manual Instruction:

1. Put one handle into holder, place the seal on the claw.

2. Lead the seal with one hand when turning the handle with the other.

3. Hold both handles then take them away from the holder.

4. Put the seal aside.

5. Release a handle then turn it ground gently.

6. Take twistor away from the gland smoothly.

Specification:

Color: Silver

Material: Stainless Steel

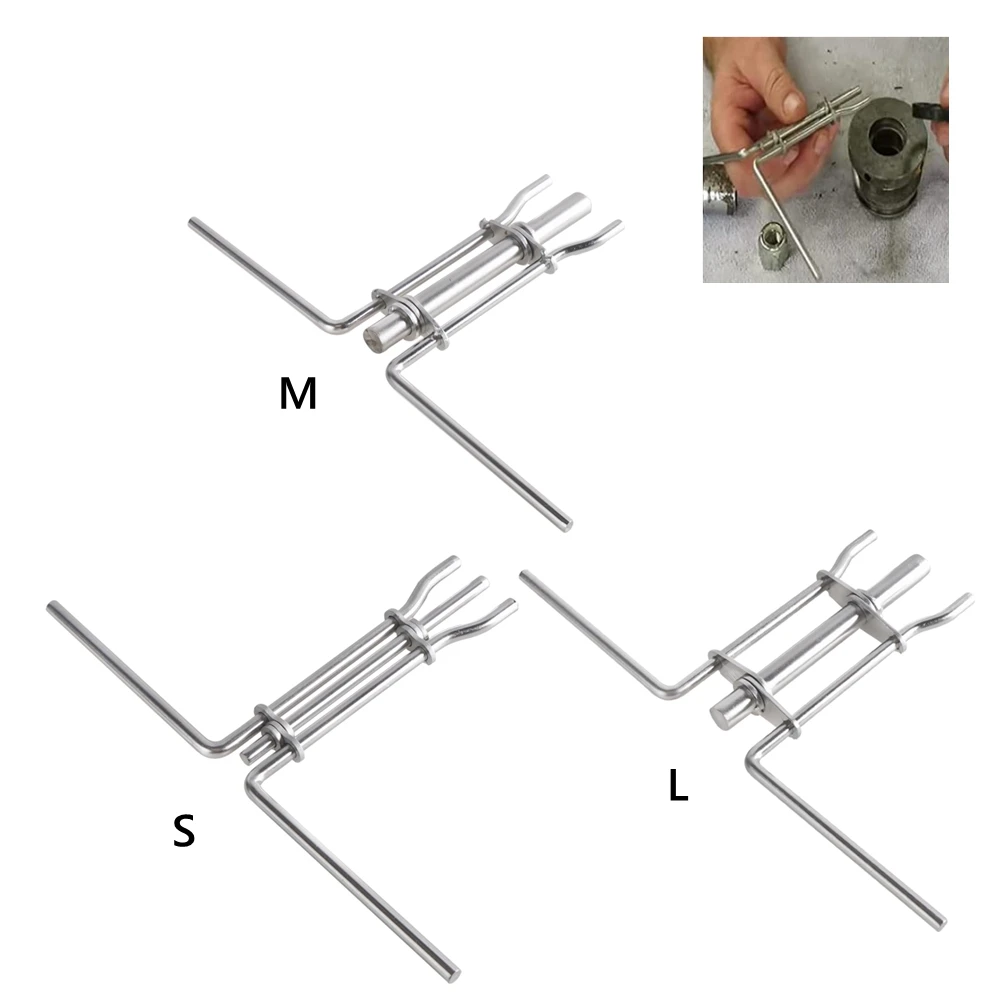

Size: S M L

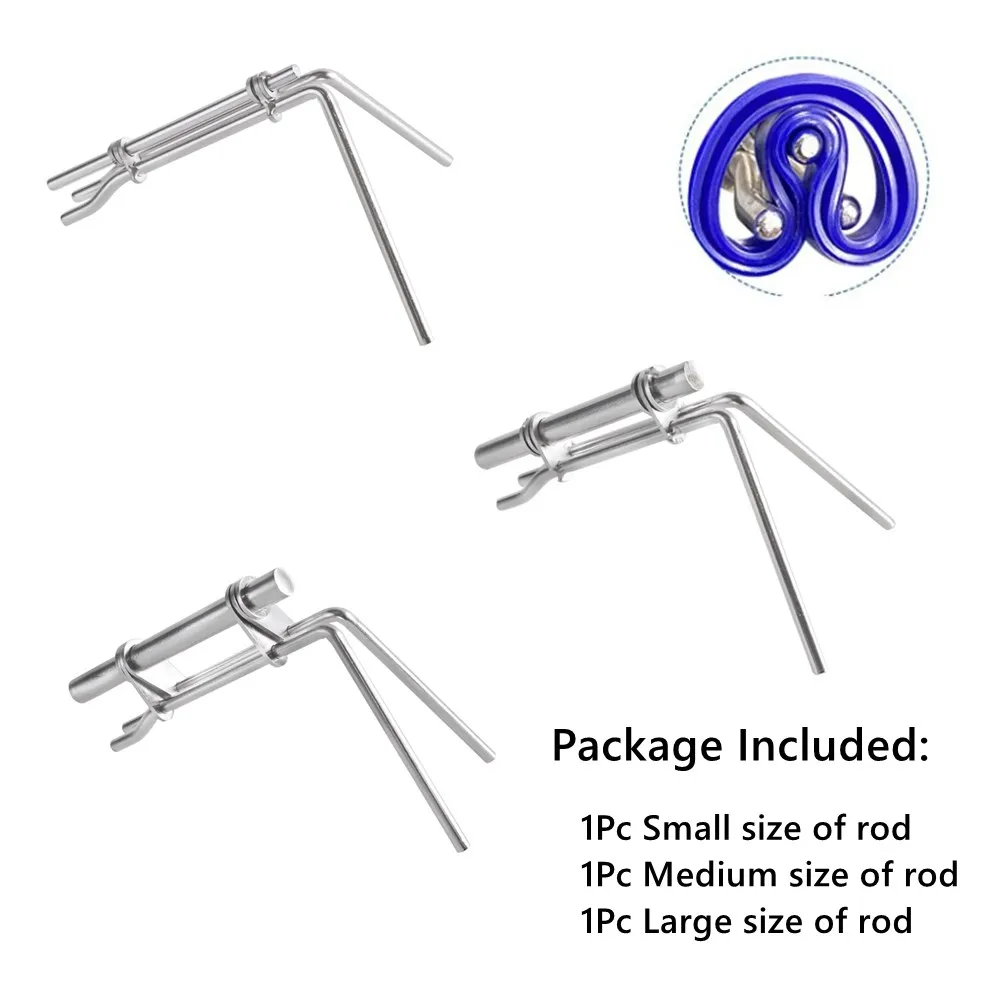

Package Included:

3x Hydraulic Cylinder Piston

Note:

1. Please allow 0.5-1cm differences due to manual measurement.

2. Due to the light and screen difference, the item's color may be slightly different from the pictures.
